High-Flow Dura-Meter™

High-Flow Dura-Meter™

Description

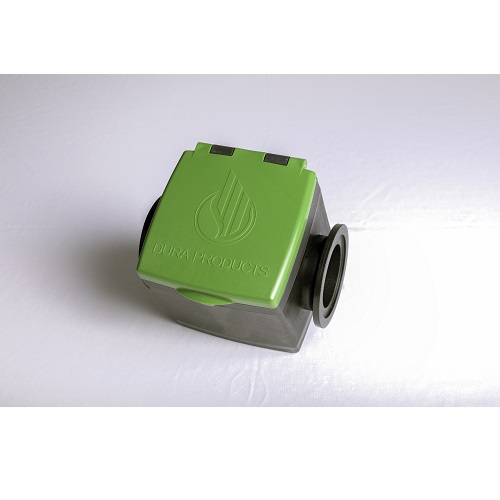

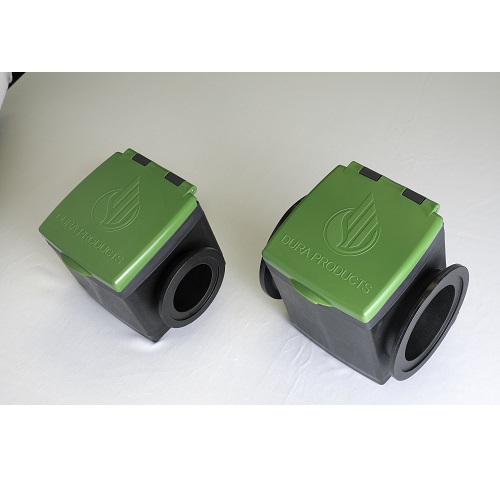

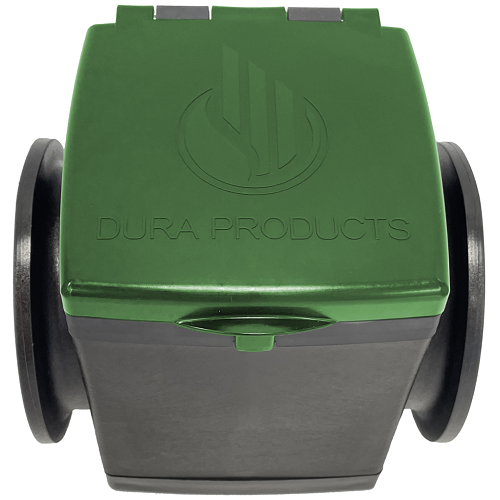

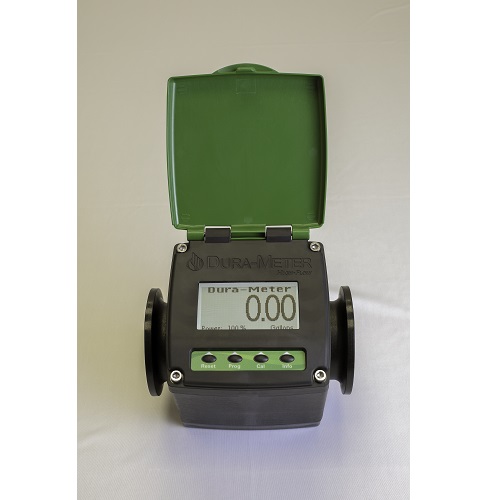

Experience durability and precision with the 2″ High-Flow Dura-Meter™, crafted from impact-resistant Lexan™ for resilience in even the harshest environments. Manufactured in the USA, this meter boasts a 1″, 2″, or 3″ Full Port industry M100, M220, or M300 Manifold Flanged design, featuring 100% moisture-sealed circuitry that renders it impervious to water intrusion. Achieving an impressive + / – 0.5% calibration accuracy, this high-flow meter significantly reduces Straight Inlet / Outlet requirements, extending field operations with the power of (2) 9V batteries. The Lexan faceplate, over-molded with shock-resistant Santoprene and gel-filled, enhances durability. The industry-leading menu-driven backlit display ensures ease of use in all light conditions, setting it apart as the most user-friendly chemical meter available. Complete with 1″ M100, 2″ M220, or 3″ M300 manifold flanges for full port flow, a 2 Year Maintenance Program, and a standard warranty, this Dura-Meter™ offers versatility with EPDM, Silicone, and Viton® seal options.



Additional information

Weight N/A
Seal Type

EPDM, Silicone, Viton

Size

1", 2", 3"

Specifications

  • Nominal Size: 1″ / 2″ /  3″
  • Connection: M100 / M220 / M300 Flange
  • Operating Temp: 32° F to 140° F
  • Flow Rate: 10 to 100 / 40 to 300 / 80 to 700 GPM
  • Meter Accuracy: +/- .5%
  • Backlit LCD Display: Yes
  • Max Pressure: 150 PSI
  • Power Source: (2) 9 Volt batteries
  • Battery Life Indicator: Yes
  • Wetted Materials: GF Polypropyl, Viton®, EPDM or Silicone seal, Sapphire
  • Meter Type/Style: Paddlewheel
  • Field Calibration Capability: Yes

Videos

Documentation

Reviews

There are no reviews yet

Leave a Review

Your rating of this product *

    How does it work with water and liquid nitrogen
  1. Q How does it work with water and liquid nitrogen
    A

    Thanks for your question.  Do you know what temperature the fluid would be when going through the meter?
