Additional information
| Voltage | 12V, 110V |
|---|---|
| Auto Shut-Off Motor | Yes, No |
Price range: $777.00 through $829.00

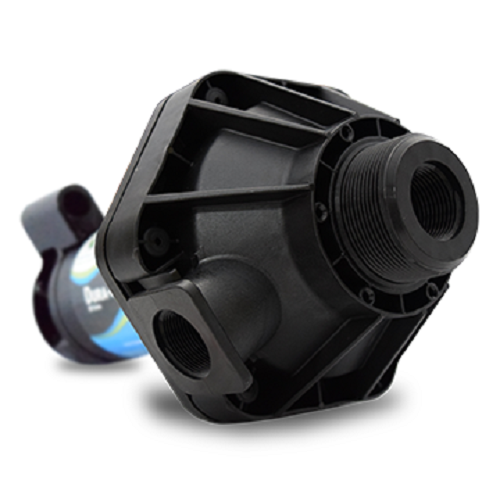

The High-Flow Dura-Pump™ DEF for Diesel Exhaust Fluid with up to 18 GPM free flow rate and 10+ GPM with 3/4″ discharge hose and nozzle. It contains a self-priming diaphragm pump with internal by-pass, meaning you can close the hose without impacting the pump. Also notable, no DEF creeps through the seals. Added to that, the Dura-Pump DEF maintains reliability in most extreme environments.
In the event that the 30 minute duty cycle is not observed, the motor is thermally protected from overheating and will shut-off automatically to protect from damage. In addition, you can easily service the pump in the field. Simply, remove 6 screws to change the cartridge and you have rebuilt the pump.
The Suction port has both a 2″ Male NPT and a 1″ Female NPT connection for a wide range of options. 10 minute auto-shut off is available (110V only). ISO22241-3 Compliant. Features 2 Year Service Warranty Plan and includes 2 Year Maintenance Program.
The Dura-Pump™ DEF is part of Dura Products’ line of premium high-flow DEF dispensing systems. Pump & Meter Solutions also offers a complete system to transport, dispense, and store Diesel Exhaust Fluid.
In Stock
Share This
Specifications
- Check Valve: Internal; EPA 165.45 compliant
- Vertical Suction Lift: Self-priming to 10ft
- Power Cord: 12 Volt = 20′; 110 Volt = 6.5′
- Motor: 1/4 HP
- Amps: 12 Volt = 18.5; 110 Volt = 2.0
- Suction Port: 2″ Male and 1″ Female NPT thread
- Discharge Port: 1″ Female NPT thread
- Auto Shut-Off Option: Yes; 10 minute; for 110 Volt only
- ISO22241-3 Compliant: Yes
- Wetted Materials: Polypropylene; 304 Stainless Steel; Santoprene (73 Shore); EPDM Seals
Add a review
DEF Dura-Pump™
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
There are no questions yet. Be the first to ask a question about this product.
Related products
-
'Dura-Pump™ Gasket Kit
Price range: $48.00 through $61.00Price range: $48.00 through $61.00Dura-Pump™ Gasket Kit
The Dura-Pump™ Gasket Kit allows you to replace worn out gaskets in your Dura-Pump™, saving you money over buying a new pump.
- Available in EPDM, Silicone, or Viton seals
- EPDM recommended for DEF products
-
'$338.00Dura-Pump™ Cartridge Kit w/ O-ring and Bottom Gasket
Dura-Pump™ Cartridge Kit with O-ring and Bottom Gasket allows users to conduct on-site repairs for their Dura-Pump™. Dura Products ensures the ease of field servicing for the Dura-Pump™ by providing readily available repair parts.
- Available in EPDM
-
'DEF Dura-Pump™ Top Unload
Price range: $751.00 through $953.00Price range: $751.00 through $953.00DEF Dura-Pump™ Top Unload

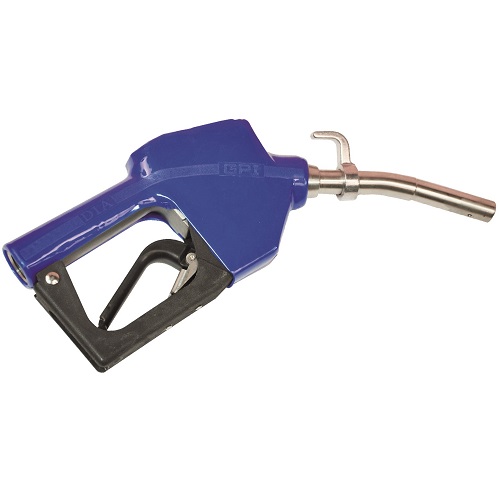

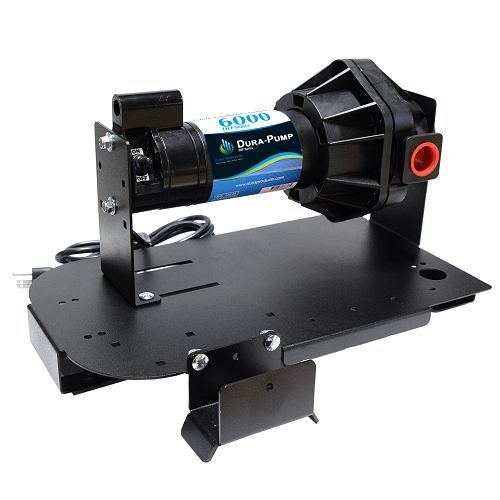

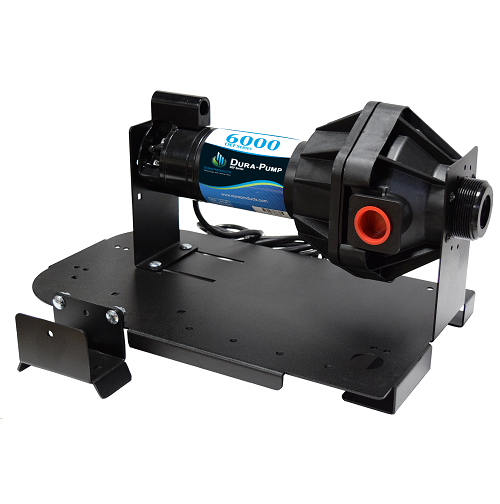

The Dura-Pump™ DEF Top Unload System comes with a 12 Volt or 110 Volt Dura-Pump™ DEF pump and is available with or without a DEF Dura-Meter™ (sold separately). In addition to the high-flow DEF Dura-Pump™, the system contains a 1″ telescoping downtube, manual or automatic nozzle, 3/4″ x 20ft discharge hose and all necessary hose clamps and fittings. This system can be mounted to the top of a 35/50 gallon drum.
