Dura-Pump™ Easy Caddy Chemical Transfer System

Dura-Pump™ Easy Caddy Chemical Transfer System

Dura-Pump Easy Caddy Chemical Transfer System Side Mount w/ Meter
Dura-Pump Easy Caddy Chemical Transfer System w/ Meter

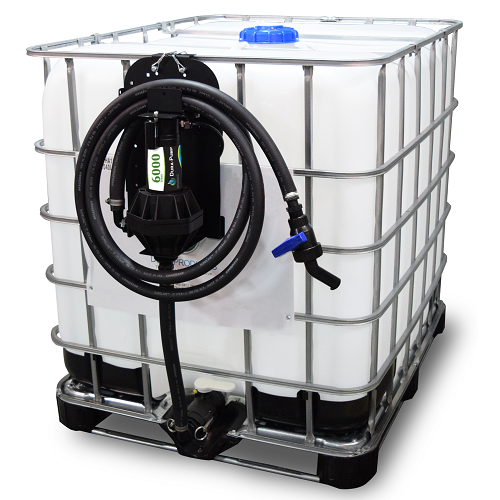

Dura-Pump Easy Caddy Chemical Transfer System w/o Meter
Dura-Pump Easy Caddy Chemical Transfer System w/o Meter
Dura-Pump Easy Caddy Chemical Transfer System Top Mount w/ Meter

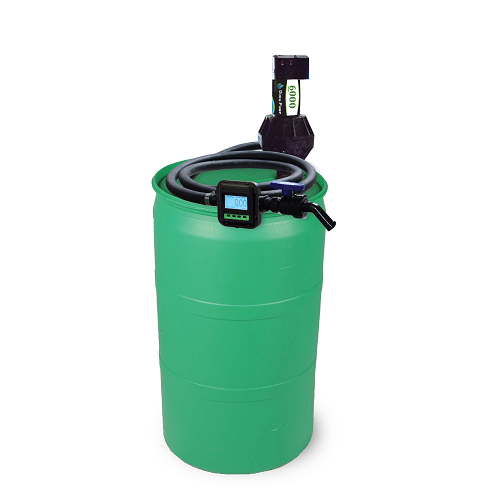

Dura-Pump Easy Caddy Chemical Transfer System 55 Gallon Drum w/ Meter

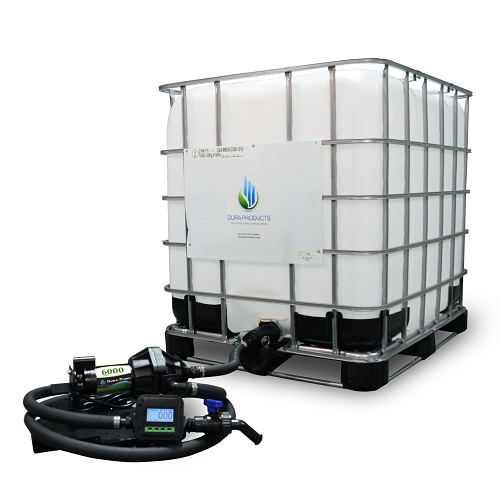

Dura-Pump Easy Caddy Chemical Transfer System Ground w/ Meter

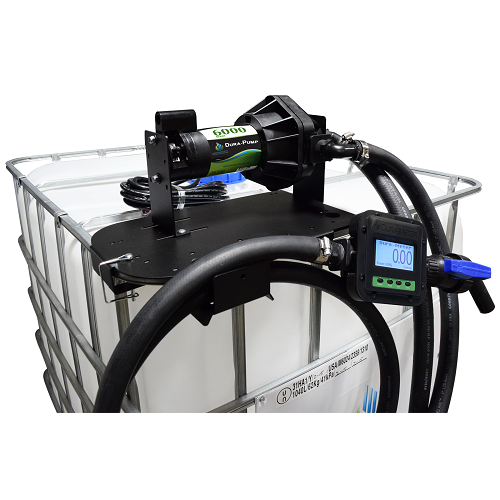

Dura-Pump Easy Caddy Chemical Transfer System Side Mount w/ Meter Full Detail
Dura-Pump Easy Caddy Chemical Transfer System Options
Agriculture Chemical Chart

Price range: $820.00 through $1,340.00

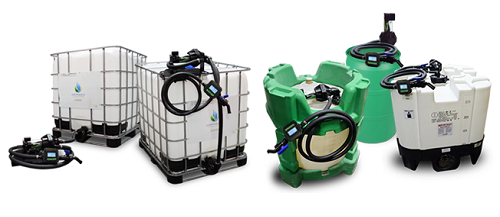

Dura-Pump™ Easy Caddy chemical transfer system is one convenient system that can be used in six ways.

  • 6 different configurations on a variety of tank/tote and drum types
  • Can be mounted on top off tank or top of 55 gallon drum, on the side of tank, or off the ground depending on user preference
  • Conversion kits are available to mount system on Monsanto and Snyder-type tanks
  • High-Flow Dura-Pump™
  • Available in both 12V and 110V
  • Optional Dura-Meter™
  • Seal options include EPDM, Silicone, or Viton
  • Size: 135 Gallon/275 Gallon Totes
  • Flow-Rate: 18 GPM / 68LPM
  • Includes a 2-year Warranty & Maintenance Program
  • Tanks, totes, and drums sold separately
SKU: N/ACategories:,
Seal Type: Choose An Option
Voltage: Choose An Option
Meter: Choose An Option
Clear
Quantity
In Stock
Share This

Description

Equipped with intuitive controls and a streamlined interface, the Dura-Pump™ Easy Caddy chemical transfer system simplifies the transfer process, reducing complexities and potential errors. Its ergonomic design ensures comfortable handling, minimizing strain and fatigue during extended use.

Safety is a top priority. The Easy Caddy implements advanced safety features, including secure seals and spill-proof mechanisms, ensuring leak-free transfers and preventing accidental spills or exposure.

Efficiency is maximized through its efficient pumping system, allowing for controlled and accurate dispensing of chemicals. This precision not only saves time but also minimizes wastage, contributing to cost-effectiveness and environmental responsibility.

The Dura-Pump™ Easy Caddy ag chemical system frame mounts in 6 different configurations on a variety of tank/tote and drum types.  Although it most commonly hangs on the side of a tote, you can also mount it on top of a cage tank or on top of a 55 gallon drum, on the side of a cage tank, or off the ground depending on user preference.

Conversion kits are available to the mount the chemical transfer system on Monsanto and Snyder type tanks.  A tote is not included with the system.  However, the system comes with an accessory kit and required hose to make all necessary connections.  As always, Dura Products stands behind their products and in front of the competition with a 2-year Warranty and Maintenance Program.

Experience the ultimate convenience and reliability in chemical transfer operations with the Dura-Pump™ Easy Caddy system—an indispensable tool that streamlines processes and ensures the safe and efficient handling of liquid chemicals.





Additional information

Seal Type

EPDM, Silicone, Viton
Voltage

12V, 110V
Meter

No, Yes

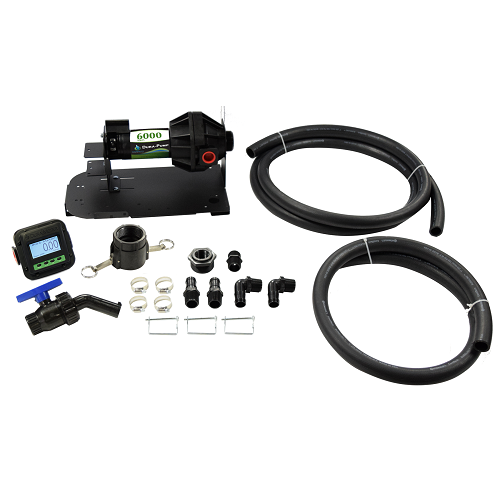

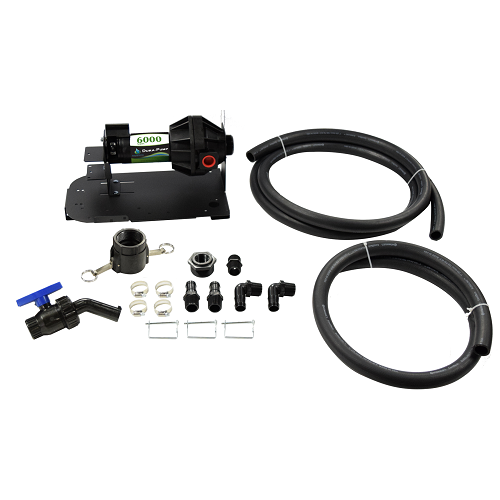

Specifications

  • Pump: High-Flow Dura-Pump™
  • Suction Hose: 1” x 5ft
  • Discharge Hose: 1” x 12ft
  • Nozzle: Ball Valve
  • Camlock: 2”
  • Meter: Dura-Meter™ (optional)
  • Other: All hose clamps, barbs and nipples

Tanks, totes and drums sold separately

Videos

Documentation

Reviews

There are no reviews yet

Leave a Review

Your rating of this product *

    Can this pump handle being fitted with a longer output hose?
  1. Q Can this pump handle being fitted with a longer output hose?
    A

    Yes, a longer output hose is fine.  You can purchase additional EPDM output hose at a cost of $4.50/foot.  Please call us at 800-890-2397 or emailing us at sales@efficientspray.com.
    2. We transfer liquid color dispersions from totes. Can this pump handle 1000-10,000 CPS materials?
  2. Q We transfer liquid color dispersions from totes. Can this pump handle 1000-10,000 CPS materials?
    A

    Yes, the Dura Pump can handle 1,000-10,000 CPS materials, but that is basically the viscosity limit.  If possible, the material should be in a warmed state at the higher end of the range.
    3. Can this pump be used to transfer soybean oil between a tote and an oil cooled electrical transformer? This operation would take place with the power locked out when preparing for servicing the internals of the transformer.
  3. Q Can this pump be used to transfer soybean oil between a tote and an oil cooled electrical transfo...... Read more
    A

    Yes, this pump can be used for soybean oil.  We can't speak to pumping into an oil cooled transformer, but the Easy Caddy is able to pump soybean oil.
    4. What is the power connection for the pump? And can a deep cycle battery run the pump?
  4. Q What is the power connection for the pump? And can a deep cycle battery run the pump?
    A Thanks for your question.  The power connection is as follows:
    • 12V DC Motor: 185 Watts, 18.5 Amps, 30 Amp In-Line Fuse, Copperplated Alligator Clips
    • 110V DV Motor: 185 Watts, 2.0 Amps, 3 Amp In-Line Fuse, 3 Prong Grounded Plug
    A deep cycle battery can run the pump and is actually the recommended option for the 12V.  They have a longer life and are better at holding a charge.
    5. Can I use a discharge hose smaller than 1"?
  5. Q Can I use a discharge hose smaller than 1"?
    A Yes, but nothing smaller than 3/4". Anything smaller will put too much stress on the pump and potentially lead to early failure.
    6. Can the Easy Caddy measure liquids in ounces?
  6. Q Can the Easy Caddy measure liquids in ounces?
    A Yes, the Easy Caddy can be programmed to measure liquids in ounces. However, the calibration is done in gallons, with a range of 2 - 22 GPM.
    7. Can you tell me what PSI this pump runs? Looking to incorporate this in to a dosatron and need to know the psi. Thanks
  7. Q Can you tell me what PSI this pump runs? Looking to incorporate this in to a dosatron and need to...... Read more
    A

    The pump runs at max of 22 PSI
    8. Thank you for the reply. I think the concentration is 15%, they usually come in 5 gallon carboys, but we are able to get it in a tote to save on money as a bulk shipment. replacing once a year is acceptable for the cartridge, can you give a price for that part as well?
  8. Q Thank you for the reply. I think the concentration is 15%, they usually come in 5 gallon carboys,...... Read more
    A

    You can replace the cartridge only.  The cost is currently $327 for the Viton cartridge kit.  https://efficientspray.com/product/dura-pump-cartridge-kit-w-o-ring-and-bottom-gasket/

    Here's an instructional video:



    https://www.youtube.com/watch?v=aGXV6fadJcQ
    9. Do you know if this will work with a tote that has sodium hypochlorite (pool chlorine) solution? We are switching to a tote system at our shop for more efficient work, and this pump with meter would work perfect! Thanks for any help you can give.
  9. Q Do you know if this will work with a tote that has sodium hypochlorite (pool chlorine) solution? ...... Read more
    A

    Thanks for your question!  It depends on the concentration of the sodium hypochlorite.  At a 100% concentrate it will have severe effects on the 304 Stainless Steel in the cartridge, so we do not recommend using this product.  At a 20% concentrate it will have some effect but will work for some time before the cartridge needs to be replaced. You would likely need to replace at least once a year to maintain the standard performance of the pump.
