Description

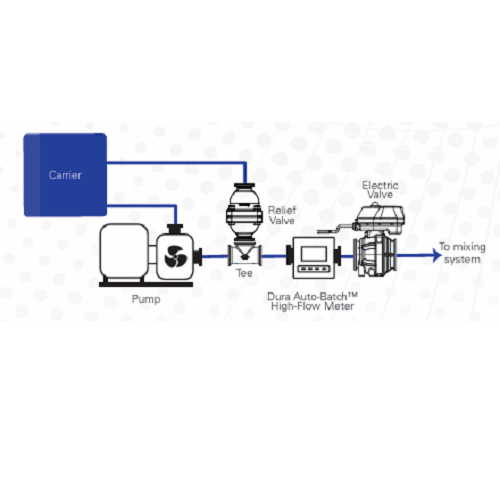

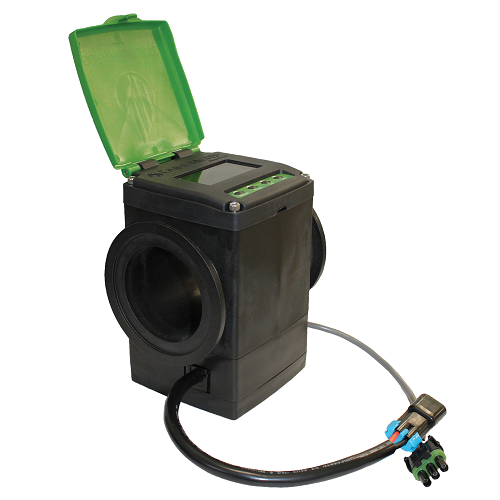

The Dura Auto-Batch™ High Flow Meter is automated for a carrier fill system. It allows for easy and efficient metering of fluids from one place to another. The operation is as simple as entering the amount of fluid you want to transfer, turning on the transfer pump, and pressing Start. The meter will open an electric ball valve to send the carrier flow to the sprayer tank. When the set amount is reached, the meter will automatically close the valve. An optional plumbing kit provides a relief valve to bypass the carrier flow back to the source tank when the electric valve is closed.
Auto-Batch™ Features:
- Controls carrier flow using a 12-volt DC electric ball valve
- Easily select manual or automatic operation
- Returns to last volume amount dispensed for easily repeatable batching
- Displays messages when batch is completed
- Optional relief valve plumbing kit for use with electric valve
- Banjo® EVX® 2” or 3” Valves available for tank bypass system
- Dura 1″ Electric Valves available for tank bypass system
- Ability to calibrate allows for industry minimum straight line before/after meter
